BoilerMag XT is a range of high specification full flow filters for large commercial-sized heating and cooling systems. BoilerMagXT features a robust fabricated stainless steel construction which is ideal for the most demanding of applications.With model sizes compatible for 1-1/2″ up to 12″ port sizes, BoilerMag XT easily handles the efficiency and reliability demands of commercial and industrial heating and cooling systems.

Ideal for large heating systems, BoilerMag XT prevents the build-up of iron oxide (black sludge) and scale in hydronic heating systems, reducing energy bills, increasing boiler life and reducing maintenance call outs.

Utilizing our high performance full flow technology , BoilerMag XT ensures that virtually 100% of unwanted debris is removed from the system. BoilerMag XT is a full flow filter, which filters 100% of the water on a single pass.

Products Features

  • Easy to install and maintain (Fits standard ANSI flanges)
  • Maintains optimum heating performance
  • Range available from 1.5” to 12”
  • Operating pressure up to 174 PSI
  • High intensity magnetic rods capture even the smallest particles
  • Large collection capacity
  • Comes with BoilerMag 10 year warranty
  • No on-going running costs
  • Premium quality manufacture
  • Automatic air vent
  • Full flow filter
  • Simple to service and clean — no need to disconnect

A full flow filter is fitted in-line within the main circulation, hence 100% of system water passes through it. This allows the BoilerMag XT to extract all the black sludge with first pass efficiency. It is vital that magnetite is extracted immediately from the circulation before it reaches the boiler. The side stream method is a risky option as magnetite can be left to circulate several times before being captured, in the meantime potentially causing damage to the system.

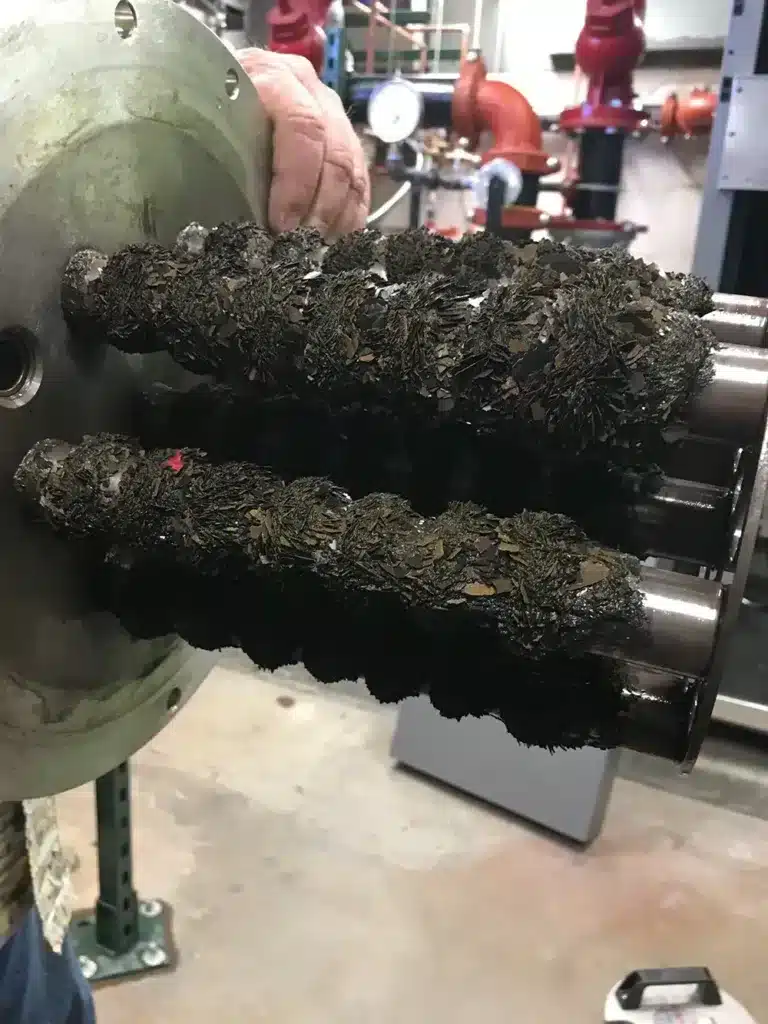

Here are pictures of the BoilerMag XT showing the iron oxide it had captured after it had been installed:

Where to Install

BoilerMag XT is generally installed on the return circuit as close to the boiler as possible. On larger systems, smaller units may be installed elsewhere giving extra protection for radiators and pipework.
